O-Ring Energized PTFE Rotary Seals

A filled PTFE sealing ring backed by an elastomer O-ring for rotary and oscillating shaft service. The O-ring supplies initial contact force; the PTFE ring forms the low-friction sliding surface against the shaft.

356 NBR and FKM reference combinations
Sized by shaft diameter, groove root diameter and groove width
For hydraulic swivels and rotary or oscillating joints

Request a Product Quote View specifications

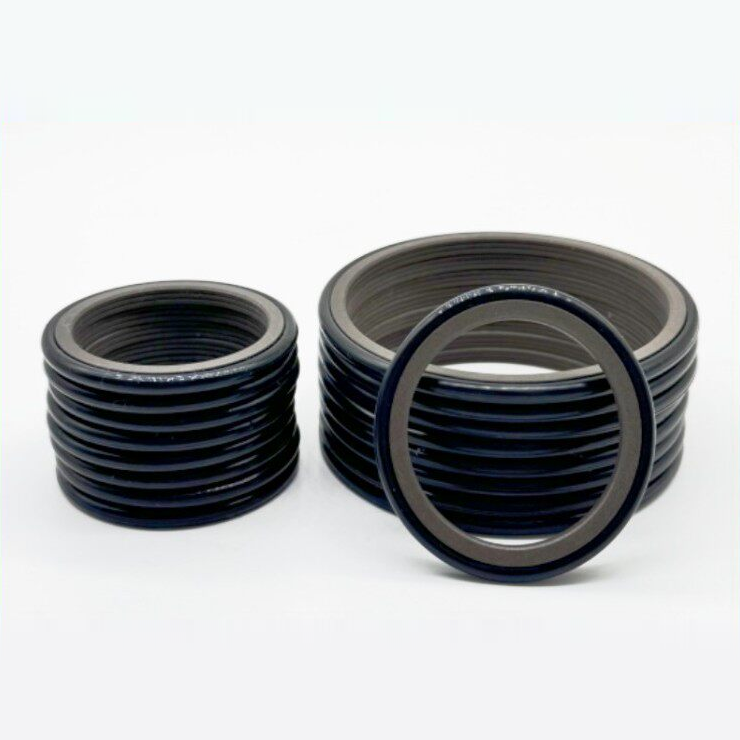

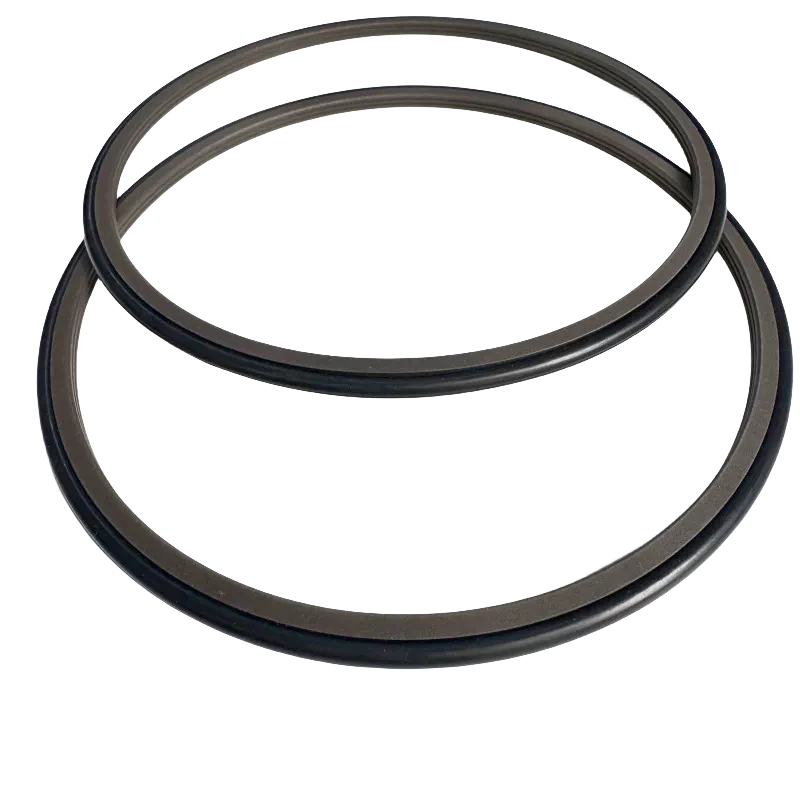

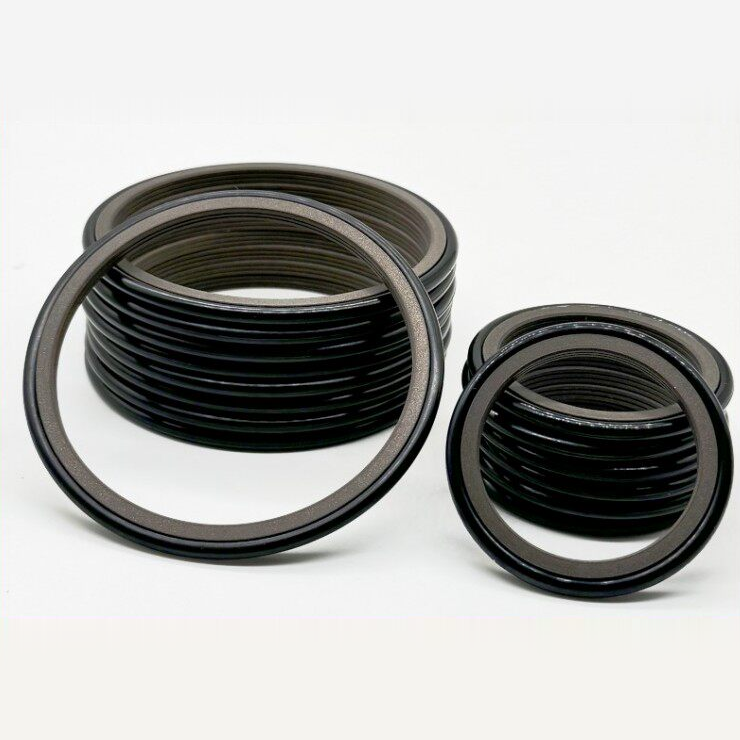

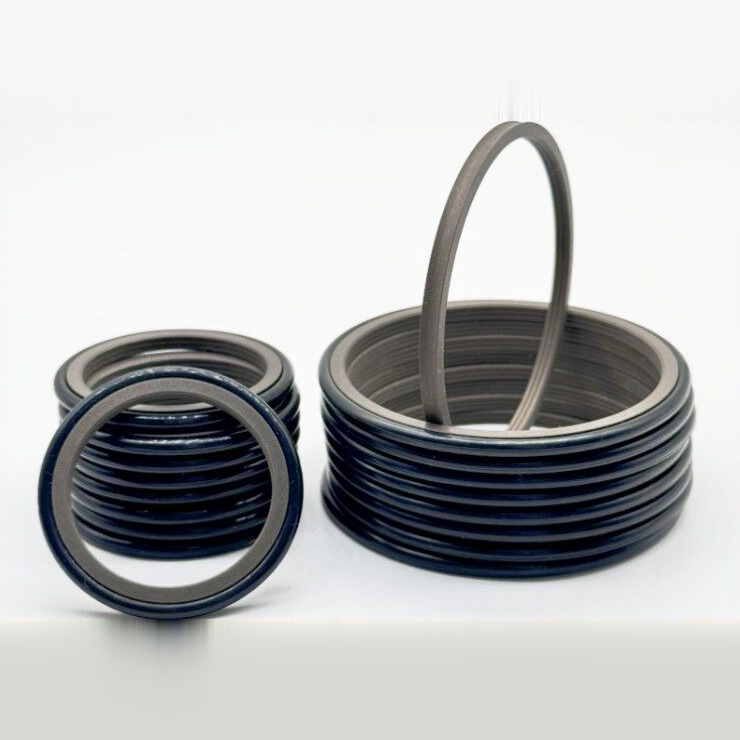

PTFE rotary shaft seal rings with black elastomer energizers in two sizes — Sliding rings and elastomer energizers

Material & configuration

Product Specifications

Use the housing groove and mating shaft dimensions to select the seal assembly. The three catalog dimensions describe the installation, not a loose seal measured on a bench.

O-Ring Energized PTFE Rotary Seals specifications
Construction	Filled PTFE sliding ring with elastomer O-ring energizer
Reference family	CP-RS
Elastomer options	NBR or FKM, identified in each reference
Motion	Shaft rotation or oscillation
Dimension order	Shaft d × housing groove root D × axial groove width L
Listed shaft diameters	4–950 mm across the individual groove combinations
Groove widths	2.2, 3.2, 4.2, 6.3, 8.1 and 9.5 mm
PTFE compound	Filled PTFE; bronze filled and carbon filled material versions
Duty selection	Pressure, surface speed, temperature, medium and clearance evaluated together
Supply unit	Set: PTFE ring plus matching O-ring energizer

Select a specification

Available Stock Specifications

356 references preserve the shaft d × groove root D × groove width L combination and the NBR or FKM energizer. Search by dimension or full reference.

Find a size or reference

356 specifications

Download all sizes (CSV)

O-Ring Energized PTFE Rotary Seals standard options and supply formats
Reference SKU	Specification	Supply format	Supply route	Inquiry
CP-RS-FKM-4X8.9X2.2	Shaft d 4 × groove root D 8.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-4X8.9X2.2	Shaft d 4 × groove root D 8.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-5X9.9X2.2	Shaft d 5 × groove root D 9.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-5X9.9X2.2	Shaft d 5 × groove root D 9.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-6X10.9X2.2	Shaft d 6 × groove root D 10.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-6X10.9X2.2	Shaft d 6 × groove root D 10.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-7X11.9X2.2	Shaft d 7 × groove root D 11.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-7X11.9X2.2	Shaft d 7 × groove root D 11.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-8X12.9X2.2	Shaft d 8 × groove root D 12.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-8X12.9X2.2	Shaft d 8 × groove root D 12.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-10X14.9X2.2	Shaft d 10 × groove root D 14.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-10X14.9X2.2	Shaft d 10 × groove root D 14.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-12X16.9X2.2	Shaft d 12 × groove root D 16.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-12X16.9X2.2	Shaft d 12 × groove root D 16.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-14X18.9X2.2	Shaft d 14 × groove root D 18.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-14X18.9X2.2	Shaft d 14 × groove root D 18.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-15X19.9X2.2	Shaft d 15 × groove root D 19.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-15X19.9X2.2	Shaft d 15 × groove root D 19.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-16X20.9X2.2	Shaft d 16 × groove root D 20.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-16X20.9X2.2	Shaft d 16 × groove root D 20.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-17X21.9X2.2	Shaft d 17 × groove root D 21.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-17X21.9X2.2	Shaft d 17 × groove root D 21.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-18X22.9X2.2	Shaft d 18 × groove root D 22.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-18X22.9X2.2	Shaft d 18 × groove root D 22.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-20X24.9X2.2	Shaft d 20 × groove root D 24.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-20X24.9X2.2	Shaft d 20 × groove root D 24.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-22X26.9X2.2	Shaft d 22 × groove root D 26.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-22X26.9X2.2	Shaft d 22 × groove root D 26.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-25X29.9X2.2	Shaft d 25 × groove root D 29.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-25X29.9X2.2	Shaft d 25 × groove root D 29.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-28X32.9X2.2	Shaft d 28 × groove root D 32.9 × groove width L 2.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-28X32.9X2.2	Shaft d 28 × groove root D 32.9 × groove width L 2.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-8X15.5X3.2	Shaft d 8 × groove root D 15.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-8X15.5X3.2	Shaft d 8 × groove root D 15.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-12X19.5X3.2	Shaft d 12 × groove root D 19.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-12X19.5X3.2	Shaft d 12 × groove root D 19.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-14X21.5X3.2	Shaft d 14 × groove root D 21.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-14X21.5X3.2	Shaft d 14 × groove root D 21.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-16X23.5X3.2	Shaft d 16 × groove root D 23.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-16X23.5X3.2	Shaft d 16 × groove root D 23.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-18X25.5X3.2	Shaft d 18 × groove root D 25.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-18X25.5X3.2	Shaft d 18 × groove root D 25.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-20X27.5X3.2	Shaft d 20 × groove root D 27.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-20X27.5X3.2	Shaft d 20 × groove root D 27.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-22X29.5X3.2	Shaft d 22 × groove root D 29.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-22X29.5X3.2	Shaft d 22 × groove root D 29.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-25X32.5X3.2	Shaft d 25 × groove root D 32.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-25X32.5X3.2	Shaft d 25 × groove root D 32.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-26X33.5X3.2	Shaft d 26 × groove root D 33.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-26X33.5X3.2	Shaft d 26 × groove root D 33.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-28X35.5X3.2	Shaft d 28 × groove root D 35.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-28X35.5X3.2	Shaft d 28 × groove root D 35.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-30X37.5X3.2	Shaft d 30 × groove root D 37.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-30X37.5X3.2	Shaft d 30 × groove root D 37.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-32X39.5X3.2	Shaft d 32 × groove root D 39.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-32X39.5X3.2	Shaft d 32 × groove root D 39.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-35X42.5X3.2	Shaft d 35 × groove root D 42.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-35X42.5X3.2	Shaft d 35 × groove root D 42.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-36X43.5X3.2	Shaft d 36 × groove root D 43.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-36X43.5X3.2	Shaft d 36 × groove root D 43.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-38X45.5X3.2	Shaft d 38 × groove root D 45.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-38X45.5X3.2	Shaft d 38 × groove root D 45.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-40X47.5X3.2	Shaft d 40 × groove root D 47.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-40X47.5X3.2	Shaft d 40 × groove root D 47.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-42X49.5X3.2	Shaft d 42 × groove root D 49.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-42X49.5X3.2	Shaft d 42 × groove root D 49.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-45X52.5X3.2	Shaft d 45 × groove root D 52.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-45X52.5X3.2	Shaft d 45 × groove root D 52.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-50X57.5X3.2	Shaft d 50 × groove root D 57.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-50X57.5X3.2	Shaft d 50 × groove root D 57.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-55X62.5X3.2	Shaft d 55 × groove root D 62.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-55X62.5X3.2	Shaft d 55 × groove root D 62.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-60X67.5X3.2	Shaft d 60 × groove root D 67.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-60X67.5X3.2	Shaft d 60 × groove root D 67.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-70X77.5X3.2	Shaft d 70 × groove root D 77.5 × groove width L 3.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-70X77.5X3.2	Shaft d 70 × groove root D 77.5 × groove width L 3.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-25X36X4.2	Shaft d 25 × groove root D 36 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-25X36X4.2	Shaft d 25 × groove root D 36 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-28X39X4.2	Shaft d 28 × groove root D 39 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-28X39X4.2	Shaft d 28 × groove root D 39 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-30X41X4.2	Shaft d 30 × groove root D 41 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-30X41X4.2	Shaft d 30 × groove root D 41 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-35X46X4.2	Shaft d 35 × groove root D 46 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-35X46X4.2	Shaft d 35 × groove root D 46 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-36X47X4.2	Shaft d 36 × groove root D 47 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-36X47X4.2	Shaft d 36 × groove root D 47 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-38X49X4.2	Shaft d 38 × groove root D 49 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-38X49X4.2	Shaft d 38 × groove root D 49 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-40X51X4.2	Shaft d 40 × groove root D 51 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-40X51X4.2	Shaft d 40 × groove root D 51 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-42X53X4.2	Shaft d 42 × groove root D 53 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-42X53X4.2	Shaft d 42 × groove root D 53 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-45X56X4.2	Shaft d 45 × groove root D 56 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-45X56X4.2	Shaft d 45 × groove root D 56 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-48X59X4.2	Shaft d 48 × groove root D 59 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-48X59X4.2	Shaft d 48 × groove root D 59 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-50X61X4.2	Shaft d 50 × groove root D 61 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-50X61X4.2	Shaft d 50 × groove root D 61 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-52X63X4.2	Shaft d 52 × groove root D 63 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-55X66X4.2	Shaft d 55 × groove root D 66 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-55X66X4.2	Shaft d 55 × groove root D 66 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-56X67X4.2	Shaft d 56 × groove root D 67 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-56X67X4.2	Shaft d 56 × groove root D 67 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-60X71X4.2	Shaft d 60 × groove root D 71 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-60X71X4.2	Shaft d 60 × groove root D 71 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-63X74X4.2	Shaft d 63 × groove root D 74 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-63X74X4.2	Shaft d 63 × groove root D 74 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-65X76X4.2	Shaft d 65 × groove root D 76 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-65X76X4.2	Shaft d 65 × groove root D 76 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-70X81X4.2	Shaft d 70 × groove root D 81 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-70X81X4.2	Shaft d 70 × groove root D 81 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-75X86X4.2	Shaft d 75 × groove root D 86 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-75X86X4.2	Shaft d 75 × groove root D 86 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-80X91X4.2	Shaft d 80 × groove root D 91 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-80X91X4.2	Shaft d 80 × groove root D 91 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-85X96X4.2	Shaft d 85 × groove root D 96 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-85X96X4.2	Shaft d 85 × groove root D 96 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-90X101X4.2	Shaft d 90 × groove root D 101 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-90X101X4.2	Shaft d 90 × groove root D 101 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-95X106X4.2	Shaft d 95 × groove root D 106 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-95X106X4.2	Shaft d 95 × groove root D 106 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-100X111X4.2	Shaft d 100 × groove root D 111 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-100X111X4.2	Shaft d 100 × groove root D 111 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-105X116X4.2	Shaft d 105 × groove root D 116 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-105X116X4.2	Shaft d 105 × groove root D 116 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-110X121X4.2	Shaft d 110 × groove root D 121 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-110X121X4.2	Shaft d 110 × groove root D 121 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-115X126X4.2	Shaft d 115 × groove root D 126 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-115X126X4.2	Shaft d 115 × groove root D 126 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-120X131X4.2	Shaft d 120 × groove root D 131 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-120X131X4.2	Shaft d 120 × groove root D 131 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-125X136X4.2	Shaft d 125 × groove root D 136 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-125X136X4.2	Shaft d 125 × groove root D 136 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-130X141X4.2	Shaft d 130 × groove root D 141 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-130X141X4.2	Shaft d 130 × groove root D 141 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-135X146X4.2	Shaft d 135 × groove root D 146 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-135X146X4.2	Shaft d 135 × groove root D 146 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-140X151X4.2	Shaft d 140 × groove root D 151 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-140X151X4.2	Shaft d 140 × groove root D 151 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-145X156X4.2	Shaft d 145 × groove root D 156 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-145X156X4.2	Shaft d 145 × groove root D 156 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-150X161X4.2	Shaft d 150 × groove root D 161 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-150X161X4.2	Shaft d 150 × groove root D 161 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-155X166X4.2	Shaft d 155 × groove root D 166 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-155X166X4.2	Shaft d 155 × groove root D 166 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-160X171X4.2	Shaft d 160 × groove root D 171 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-160X171X4.2	Shaft d 160 × groove root D 171 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-165X176X4.2	Shaft d 165 × groove root D 176 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-165X176X4.2	Shaft d 165 × groove root D 176 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-170X181X4.2	Shaft d 170 × groove root D 181 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-170X181X4.2	Shaft d 170 × groove root D 181 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-175X186X4.2	Shaft d 175 × groove root D 186 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-175X186X4.2	Shaft d 175 × groove root D 186 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-180X191X4.2	Shaft d 180 × groove root D 191 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-180X191X4.2	Shaft d 180 × groove root D 191 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-185X196X4.2	Shaft d 185 × groove root D 196 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-185X196X4.2	Shaft d 185 × groove root D 196 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-190X201X4.2	Shaft d 190 × groove root D 201 × groove width L 4.2 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-190X201X4.2	Shaft d 190 × groove root D 201 × groove width L 4.2 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-38X53.5X6.3	Shaft d 38 × groove root D 53.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-38X53.5X6.3	Shaft d 38 × groove root D 53.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-40X55.5X6.3	Shaft d 40 × groove root D 55.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-40X55.5X6.3	Shaft d 40 × groove root D 55.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-45X60.5X6.3	Shaft d 45 × groove root D 60.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-45X60.5X6.3	Shaft d 45 × groove root D 60.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-48X63.5X6.3	Shaft d 48 × groove root D 63.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-48X63.5X6.3	Shaft d 48 × groove root D 63.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-50X65.5X6.3	Shaft d 50 × groove root D 65.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-50X65.5X6.3	Shaft d 50 × groove root D 65.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-55X70.5X6.3	Shaft d 55 × groove root D 70.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-55X70.5X6.3	Shaft d 55 × groove root D 70.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-60X75.5X6.3	Shaft d 60 × groove root D 75.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-60X75.5X6.3	Shaft d 60 × groove root D 75.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-63X78.5X6.3	Shaft d 63 × groove root D 78.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-63X78.5X6.3	Shaft d 63 × groove root D 78.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-65X80.5X6.3	Shaft d 65 × groove root D 80.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-65X80.5X6.3	Shaft d 65 × groove root D 80.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-70X85.5X6.3	Shaft d 70 × groove root D 85.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-70X85.5X6.3	Shaft d 70 × groove root D 85.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-75X90.5X6.3	Shaft d 75 × groove root D 90.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-75X90.5X6.3	Shaft d 75 × groove root D 90.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-80X95.5X6.3	Shaft d 80 × groove root D 95.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-80X95.5X6.3	Shaft d 80 × groove root D 95.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-85X100.5X6.3	Shaft d 85 × groove root D 100.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-85X100.5X6.3	Shaft d 85 × groove root D 100.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-90X105.5X6.3	Shaft d 90 × groove root D 105.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-90X105.5X6.3	Shaft d 90 × groove root D 105.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-95X110.5X6.3	Shaft d 95 × groove root D 110.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-95X110.5X6.3	Shaft d 95 × groove root D 110.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-100X115.5X6.3	Shaft d 100 × groove root D 115.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-100X115.5X6.3	Shaft d 100 × groove root D 115.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-105X120.5X6.3	Shaft d 105 × groove root D 120.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-105X120.5X6.3	Shaft d 105 × groove root D 120.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-110X125.5X6.3	Shaft d 110 × groove root D 125.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-110X125.5X6.3	Shaft d 110 × groove root D 125.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-115X130.5X6.3	Shaft d 115 × groove root D 130.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-115X130.5X6.3	Shaft d 115 × groove root D 130.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-120X135.5X6.3	Shaft d 120 × groove root D 135.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-120X135.5X6.3	Shaft d 120 × groove root D 135.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-125X140.5X6.3	Shaft d 125 × groove root D 140.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-125X140.5X6.3	Shaft d 125 × groove root D 140.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-130X145.5X6.3	Shaft d 130 × groove root D 145.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-130X145.5X6.3	Shaft d 130 × groove root D 145.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-135X150.5X6.3	Shaft d 135 × groove root D 150.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-135X150.5X6.3	Shaft d 135 × groove root D 150.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-140X155.5X6.3	Shaft d 140 × groove root D 155.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-140X155.5X6.3	Shaft d 140 × groove root D 155.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-145X160.5X6.3	Shaft d 145 × groove root D 160.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-145X160.5X6.3	Shaft d 145 × groove root D 160.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-150X165.5X6.3	Shaft d 150 × groove root D 165.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-150X165.5X6.3	Shaft d 150 × groove root D 165.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-155X170.5X6.3	Shaft d 155 × groove root D 170.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-155X170.5X6.3	Shaft d 155 × groove root D 170.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-160X175.5X6.3	Shaft d 160 × groove root D 175.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-160X175.5X6.3	Shaft d 160 × groove root D 175.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-165X180.5X6.3	Shaft d 165 × groove root D 180.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-165X180.5X6.3	Shaft d 165 × groove root D 180.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-170X185.5X6.3	Shaft d 170 × groove root D 185.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-170X185.5X6.3	Shaft d 170 × groove root D 185.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-175X190.5X6.3	Shaft d 175 × groove root D 190.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-175X190.5X6.3	Shaft d 175 × groove root D 190.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-180X195.5X6.3	Shaft d 180 × groove root D 195.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-180X195.5X6.3	Shaft d 180 × groove root D 195.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-185X200.5X6.3	Shaft d 185 × groove root D 200.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-185X200.5X6.3	Shaft d 185 × groove root D 200.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-190X205.5X6.3	Shaft d 190 × groove root D 205.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-190X205.5X6.3	Shaft d 190 × groove root D 205.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-195X210.5X6.3	Shaft d 195 × groove root D 210.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-195X210.5X6.3	Shaft d 195 × groove root D 210.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-200X215.5X6.3	Shaft d 200 × groove root D 215.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-200X215.5X6.3	Shaft d 200 × groove root D 215.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-205X220.5X6.3	Shaft d 205 × groove root D 220.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-205X220.5X6.3	Shaft d 205 × groove root D 220.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-210X225.5X6.3	Shaft d 210 × groove root D 225.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-210X225.5X6.3	Shaft d 210 × groove root D 225.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-215X230.5X6.3	Shaft d 215 × groove root D 230.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-215X230.5X6.3	Shaft d 215 × groove root D 230.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-220X235.5X6.3	Shaft d 220 × groove root D 235.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-220X235.5X6.3	Shaft d 220 × groove root D 235.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-225X240.5X6.3	Shaft d 225 × groove root D 240.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-225X240.5X6.3	Shaft d 225 × groove root D 240.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-230X245.5X6.3	Shaft d 230 × groove root D 245.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-230X245.5X6.3	Shaft d 230 × groove root D 245.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-235X250.5X6.3	Shaft d 235 × groove root D 250.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-235X250.5X6.3	Shaft d 235 × groove root D 250.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-240X255.5X6.3	Shaft d 240 × groove root D 255.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-240X255.5X6.3	Shaft d 240 × groove root D 255.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-245X260.5X6.3	Shaft d 245 × groove root D 260.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-245X260.5X6.3	Shaft d 245 × groove root D 260.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-250X265.5X6.3	Shaft d 250 × groove root D 265.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-250X265.5X6.3	Shaft d 250 × groove root D 265.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-255X270.5X6.3	Shaft d 255 × groove root D 270.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-255X270.5X6.3	Shaft d 255 × groove root D 270.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-260X275.5X6.3	Shaft d 260 × groove root D 275.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-260X275.5X6.3	Shaft d 260 × groove root D 275.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-265X280.5X6.3	Shaft d 265 × groove root D 280.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-265X280.5X6.3	Shaft d 265 × groove root D 280.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-270X285.5X6.3	Shaft d 270 × groove root D 285.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-270X285.5X6.3	Shaft d 270 × groove root D 285.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-275X290.5X6.3	Shaft d 275 × groove root D 290.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-275X290.5X6.3	Shaft d 275 × groove root D 290.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-280X295.5X6.3	Shaft d 280 × groove root D 295.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-280X295.5X6.3	Shaft d 280 × groove root D 295.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-285X300.5X6.3	Shaft d 285 × groove root D 300.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-285X300.5X6.3	Shaft d 285 × groove root D 300.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-290X305.5X6.3	Shaft d 290 × groove root D 305.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-290X305.5X6.3	Shaft d 290 × groove root D 305.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-295X310.5X6.3	Shaft d 295 × groove root D 310.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-295X310.5X6.3	Shaft d 295 × groove root D 310.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-300X315.5X6.3	Shaft d 300 × groove root D 315.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-300X315.5X6.3	Shaft d 300 × groove root D 315.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-310X325.5X6.3	Shaft d 310 × groove root D 325.5 × groove width L 6.3 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-310X325.5X6.3	Shaft d 310 × groove root D 325.5 × groove width L 6.3 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-200X221X8.1	Shaft d 200 × groove root D 221 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-200X221X8.1	Shaft d 200 × groove root D 221 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-210X231X8.1	Shaft d 210 × groove root D 231 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-210X231X8.1	Shaft d 210 × groove root D 231 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-215X236X8.1	Shaft d 215 × groove root D 236 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-215X236X8.1	Shaft d 215 × groove root D 236 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-220X241X8.1	Shaft d 220 × groove root D 241 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-220X241X8.1	Shaft d 220 × groove root D 241 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-225X246X8.1	Shaft d 225 × groove root D 246 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-225X246X8.1	Shaft d 225 × groove root D 246 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-230X251X8.1	Shaft d 230 × groove root D 251 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-230X251X8.1	Shaft d 230 × groove root D 251 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-240X261X8.1	Shaft d 240 × groove root D 261 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-240X261X8.1	Shaft d 240 × groove root D 261 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-250X271X8.1	Shaft d 250 × groove root D 271 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-250X271X8.1	Shaft d 250 × groove root D 271 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-260X284.5X8.1	Shaft d 260 × groove root D 284.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-260X284.5X8.1	Shaft d 260 × groove root D 284.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-265X289.5X8.1	Shaft d 265 × groove root D 289.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-265X289.5X8.1	Shaft d 265 × groove root D 289.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-270X294.5X8.1	Shaft d 270 × groove root D 294.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-270X294.5X8.1	Shaft d 270 × groove root D 294.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-280X301X8.1	Shaft d 280 × groove root D 301 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-280X304.5X8.1	Shaft d 280 × groove root D 304.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-280X304.5X8.1	Shaft d 280 × groove root D 304.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-290X314.5X8.1	Shaft d 290 × groove root D 314.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-290X314.5X8.1	Shaft d 290 × groove root D 314.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-300X321X8.1	Shaft d 300 × groove root D 321 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-300X324.5X8.1	Shaft d 300 × groove root D 324.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-300X324.5X8.1	Shaft d 300 × groove root D 324.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-320X341X8.1	Shaft d 320 × groove root D 341 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-320X344.5X8.1	Shaft d 320 × groove root D 344.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-320X344.5X8.1	Shaft d 320 × groove root D 344.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-330X354.5X8.1	Shaft d 330 × groove root D 354.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-330X354.5X8.1	Shaft d 330 × groove root D 354.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-340X364.5X8.1	Shaft d 340 × groove root D 364.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-340X364.5X8.1	Shaft d 340 × groove root D 364.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-350X371X8.1	Shaft d 350 × groove root D 371 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-350X374.5X8.1	Shaft d 350 × groove root D 374.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-350X374.5X8.1	Shaft d 350 × groove root D 374.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-360X381X8.1	Shaft d 360 × groove root D 381 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-360X384.5X8.1	Shaft d 360 × groove root D 384.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-360X384.5X8.1	Shaft d 360 × groove root D 384.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-370X394.5X8.1	Shaft d 370 × groove root D 394.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-370X394.5X8.1	Shaft d 370 × groove root D 394.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-380X404.5X8.1	Shaft d 380 × groove root D 404.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-380X404.5X8.1	Shaft d 380 × groove root D 404.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-390X414.5X8.1	Shaft d 390 × groove root D 414.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-390X414.5X8.1	Shaft d 390 × groove root D 414.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-400X421X8.1	Shaft d 400 × groove root D 421 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-400X424.5X8.1	Shaft d 400 × groove root D 424.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-400X424.5X8.1	Shaft d 400 × groove root D 424.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-410X434.5X8.1	Shaft d 410 × groove root D 434.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-410X434.5X8.1	Shaft d 410 × groove root D 434.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-420X441X8.1	Shaft d 420 × groove root D 441 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-420X444.5X8.1	Shaft d 420 × groove root D 444.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-420X444.5X8.1	Shaft d 420 × groove root D 444.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-430X454.5X8.1	Shaft d 430 × groove root D 454.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-430X454.5X8.1	Shaft d 430 × groove root D 454.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-440X464.5X8.1	Shaft d 440 × groove root D 464.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-440X464.5X8.1	Shaft d 440 × groove root D 464.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-450X471X8.1	Shaft d 450 × groove root D 471 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-450X474.5X8.1	Shaft d 450 × groove root D 474.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-450X474.5X8.1	Shaft d 450 × groove root D 474.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-FKM-460X484.5X8.1	Shaft d 460 × groove root D 484.5 × groove width L 8.1 mm	Set; FKM O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-460X484.5X8.1	Shaft d 460 × groove root D 484.5 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-480X501X8.1	Shaft d 480 × groove root D 501 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-500X521X8.1	Shaft d 500 × groove root D 521 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-520X541X8.1	Shaft d 520 × groove root D 541 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-550X571X8.1	Shaft d 550 × groove root D 571 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-600X621X8.1	Shaft d 600 × groove root D 621 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-620X641X8.1	Shaft d 620 × groove root D 641 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-630X651X8.1	Shaft d 630 × groove root D 651 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-640X661X8.1	Shaft d 640 × groove root D 661 × groove width L 8.1 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-650X678X9.5	Shaft d 650 × groove root D 678 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-680X708X9.5	Shaft d 680 × groove root D 708 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-700X728X9.5	Shaft d 700 × groove root D 728 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-720X748X9.5	Shaft d 720 × groove root D 748 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-750X778X9.5	Shaft d 750 × groove root D 778 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-800X828X9.5	Shaft d 800 × groove root D 828 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-850X878X9.5	Shaft d 850 × groove root D 878 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-900X928X9.5	Shaft d 900 × groove root D 928 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote
CP-RS-NBR-950X978X9.5	Shaft d 950 × groove root D 978 × groove width L 9.5 mm	Set; NBR O-ring energizer	Stock inquiry	Check Stock & Quote

Dimensions are in millimetres. Request availability and a set price for the selected reference and duty. NBR and FKM rows are separate assemblies; the table is a size selection list rather than a live inventory feed.

Need a different specification? Send your dimensions

Two parts with different sealing jobs

The elastomer deforms in the housing groove and presses the PTFE ring toward the shaft. The PTFE face then provides the sliding contact surface. The energizer and sliding ring work as one assembly, so compound selection must address both components.

Use the assembly for the rotary or oscillating motion defined by the seal profile. Groove geometry, pressure direction and any relief features belong on the installation drawing. A similarly sized plain ring or conventional lip seal has a different installation and operating behavior.

Read d × D × L as installation dimensions

The reference CP-RS-NBR-100X111X4.2 identifies a 100 mm shaft, an 111 mm housing groove root and a 4.2 mm axial groove width, with an NBR energizer. It does not specify a loose ring measuring 100 × 111 × 4.2 mm.

Keep different groove versions separate. A 300 mm shaft with an 8.1 mm groove width appears with more than one groove root diameter. Match all three installation dimensions before selecting a replacement; measure the metal groove rather than relying on an expanded or worn seal.

Choose the energizer and shaft finish together

NBR is a common choice for compatible hydraulic-oil duties. FKM changes the heat and fluid compatibility of the elastomer, but it does not by itself establish the temperature capability of the complete seal. Include the PTFE filler and actual medium in the selection.

Shaft finish, runout, lubrication and extrusion clearance affect wear and leakage. Provide rotational speed as rpm or shaft surface speed, and describe oscillation angle and frequency where applicable. Pressure, speed and temperature limits must be treated as a combined duty rather than independent maxima.

PTFE rotary seal rings stacked with a large sliding ring standing upright — Profile and sliding-face detail

Two groups of filled PTFE rotary shaft seals with separate rings in front — Different ring sizes kept as separate sets

Stacked rotary seal sets with black O-ring energizers and PTFE faces — Seal sets ready for matched assembly

Two overlapping filled PTFE rotary shaft sealing rings on white — The PTFE sliding-ring component

Drawing-based PTFE seal components Filled PTFE compound selection

Equipment & process duties

Applications

Hydraulic rotary unions

Seal the rotating shaft-to-housing interface using a matched PTFE ring and elastomer energizer.

Oscillating hydraulic joints

Specify swing angle, frequency and pressure cycling for joints that reverse direction repeatedly.

Machine-tool hydraulic assemblies

Select replacement seal sets from the shaft and groove drawing, with the running surface and lubrication conditions.

Direct answers

Common Questions

Are the listed dimensions the seal's free dimensions?

No. d is the shaft diameter, D is the housing groove root diameter and L is the axial groove width. The PTFE ring and O-ring are matched to that installation.

What is the difference between an NBR and an FKM reference?

The material code identifies the O-ring energizer. Choose it for the operating medium and temperature, then specify the PTFE sliding-ring compound for the same duty.

Will the same shaft diameter and groove width guarantee a fit?

No. The groove root diameter and seal cross-section also determine the installation. Different D values remain separate references even where d and L match.

What is supplied as one set?

One PTFE sliding ring and its matching elastomer O-ring energizer. State separately if the purchase is for sliding rings or energizers only.

What operating information belongs in a rotary-seal inquiry?

Include medium, pressure, temperature, shaft rpm or surface speed, runout, shaft finish, lubrication and extrusion clearance. For oscillation, include the swing angle and reversal rate.

Specify your requirement

Quote O-Ring Energized PTFE Rotary Seals

Select the full CP-RS reference and quantity. Attach the shaft and groove drawing with d, D and L, then add NBR or FKM, PTFE filler, pressure, medium, temperature, rotational duty, shaft finish and clearance.

Send Your Requirement

Compare the construction
