Bronze Filled PTFE Guide Strips

Bronze filled PTFE strip for piston guides, rod guides and hydraulic wear bands. Cut the strip to length to form a split guide ring that supports side load and keeps moving metal surfaces apart.

104 listed cross-sections: 2.5–50 mm wide, 1–5 mm thick
Supplied by the metre, in coils or as cut lengths
For oil-lubricated guiding and sliding support

Request a Product Quote View specifications

Bronze filled PTFE guide-strip coil with a loose band held forward — Coiled strip and the broad sliding face

Material & configuration

Product Specifications

Choose the strip cross-section to fit the guide groove. Specify the installed diameter and cut length separately.

Bronze Filled PTFE Guide Strips specifications
Material	Bronze filled PTFE
Reference family	CP-GTB
Cross-section	Rectangular; width B × radial thickness T
Listed width range	2.5–50 mm; use the individual combinations below
Listed thicknesses	1, 1.5, 2, 2.5, 3, 3.5, 4 and 5 mm
Supply formats	Metre lengths, coils and cut guide-ring blanks
Working function	Radial guidance, side-load support and sliding separation
Cut ends	Straight or angled cuts; specify end gap and angle on the drawing
Edge detail	2.5 × 2 mm reference: square edges, no chamfer
Quotation unit	Metre; include total length and individual cut lengths

Select a specification

Available Stock Specifications

104 listed B × T combinations. Select a complete cross-section and add the required length; the reference does not include a finished ring diameter.

Find a size or reference

104 specifications

Download all sizes (CSV)

Bronze Filled PTFE Guide Strips standard options and supply formats
Reference SKU	Specification	Supply format	Supply route	Inquiry
CP-GTB-3X1	Width B 3 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-4X1	Width B 4 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-5X1	Width B 5 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X1	Width B 6 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X1	Width B 8 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X1	Width B 10 × thickness T 1 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-2.5X1.5	Width B 2.5 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-3X1.5	Width B 3 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-4X1.5	Width B 4 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-5X1.5	Width B 5 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X1.5	Width B 6 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X1.5	Width B 8 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9.7X1.5	Width B 9.7 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X1.5	Width B 10 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X1.5	Width B 12 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X1.5	Width B 15 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X1.5	Width B 20 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X1.5	Width B 25 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X1.5	Width B 30 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-2.5X2	Width B 2.5 × thickness T 2 mm; square edges, no chamfer	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-3X2	Width B 3 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-4X2	Width B 4 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-5X2	Width B 5 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X2	Width B 6 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X2	Width B 8 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8.5X2	Width B 8.5 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9.7X2	Width B 9.7 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X2	Width B 10 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X2	Width B 12 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X2	Width B 15 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X2	Width B 20 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X2	Width B 25 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X2	Width B 30 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X2	Width B 35 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X2	Width B 40 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-45X2	Width B 45 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X2	Width B 50 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-2.5X2.5	Width B 2.5 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-4X2.5	Width B 4 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-5X2.5	Width B 5 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-5.6X2.5	Width B 5.6 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X2.5	Width B 6 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6.3X2.5	Width B 6.3 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-7X2.5	Width B 7 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X2.5	Width B 8 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8.5X2.5	Width B 8.5 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9X2.5	Width B 9 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9.7X2.5	Width B 9.7 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X2.5	Width B 10 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X2.5	Width B 12 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X2.5	Width B 15 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X2.5	Width B 20 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X2.5	Width B 25 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X2.5	Width B 30 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X2.5	Width B 35 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X2.5	Width B 40 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-45X2.5	Width B 45 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X2.5	Width B 50 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-4X3	Width B 4 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X3	Width B 6 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X3	Width B 8 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9.7X3	Width B 9.7 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X3	Width B 10 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X3	Width B 12 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X3	Width B 15 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X3	Width B 20 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X3	Width B 25 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X3	Width B 30 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X3	Width B 35 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X3	Width B 40 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-45X3	Width B 45 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X3	Width B 50 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X3.5	Width B 8 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X3.5	Width B 10 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X3.5	Width B 12 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X3.5	Width B 15 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X3.5	Width B 20 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X3.5	Width B 25 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X3.5	Width B 30 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X3.5	Width B 35 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X3.5	Width B 40 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X3.5	Width B 50 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-6X4	Width B 6 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X4	Width B 8 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-9.7X4	Width B 9.7 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X4	Width B 10 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-12X4	Width B 12 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X4	Width B 15 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X4	Width B 20 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X4	Width B 25 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X4	Width B 30 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X4	Width B 35 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X4	Width B 40 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-45X4	Width B 45 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X4	Width B 50 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-8X5	Width B 8 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-10X5	Width B 10 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-15X5	Width B 15 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-20X5	Width B 20 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-25X5	Width B 25 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-30X5	Width B 30 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-35X5	Width B 35 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-40X5	Width B 40 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTB-50X5	Width B 50 × thickness T 5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote

Prices are quoted by requirement. Availability, total length, cut-end machining and packaging are included in the quotation. These references identify sizes rather than live warehouse quantities.

Need a different specification? Send your dimensions

A wear band carries side load; the seal holds pressure

A guide band sits between the piston or rod and its metal mating surface. It distributes radial contact across its bearing width and helps keep the sealing elements aligned. The pressure seal remains a separate part of the cylinder assembly.

Bronze filler improves the wear and creep behavior of PTFE for loaded sliding contact. The combination suits lubricated hydraulic guides, where contact area, side load and the condition of the mating surface determine the useful bearing arrangement.

Specify the groove before cutting the ring

Width B fills the axial guide groove; thickness T controls the radial fit. A nominal cylinder bore alone does not define the strip size. Measure the guide groove and use the installed position to calculate the required circumference.

Leave the designed end gap for assembly and thermal expansion. A 60° angled end is one available drawing detail; identify the angle reference and gap rather than ordering by angle alone. Keep chips and cut-edge burrs out of the groove.

Give B × T and the total number of metres.
For finished ring blanks, include installed diameter, cut length and end gap.
State the oil, operating temperature, sliding speed and radial load for material selection.

Choose bronze filling for the actual sliding environment

The metal filler changes the chemical and electrical behavior of the compound. Use bronze filled material for a compatible lubricated mechanism; select virgin PTFE separately where an unfilled contact surface or electrical isolation is central to the design.

Replacing a wear band with the same width and thickness is only a geometric match. Check the compound, bearing length, lubrication and expansion gap as part of a cylinder repair, especially when scoring or uneven wear is visible.

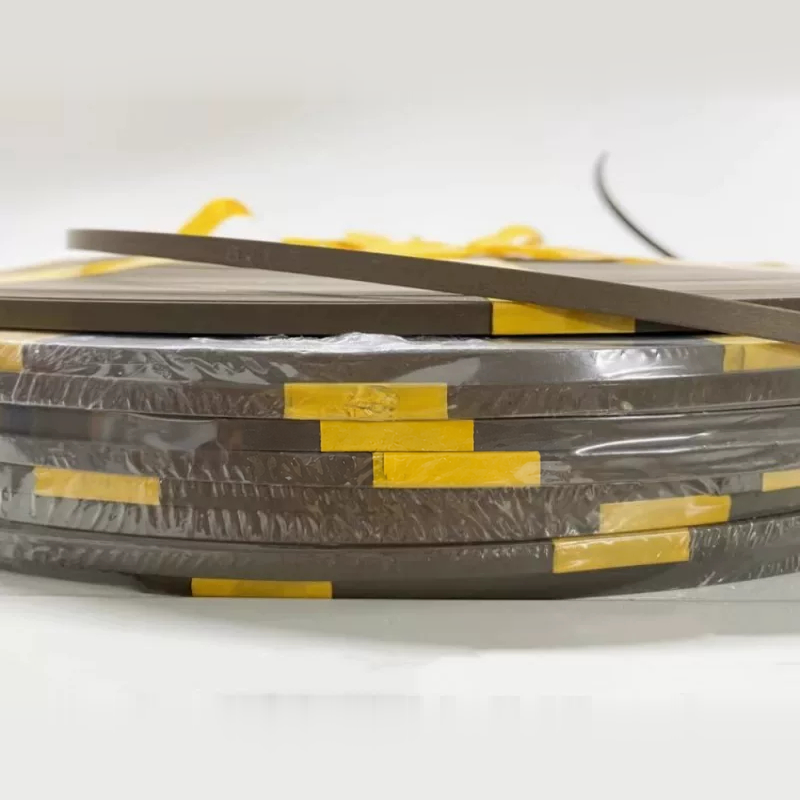

Stacked bronze filled PTFE wear-strip coils viewed from the edge — The rectangular section in coil supply

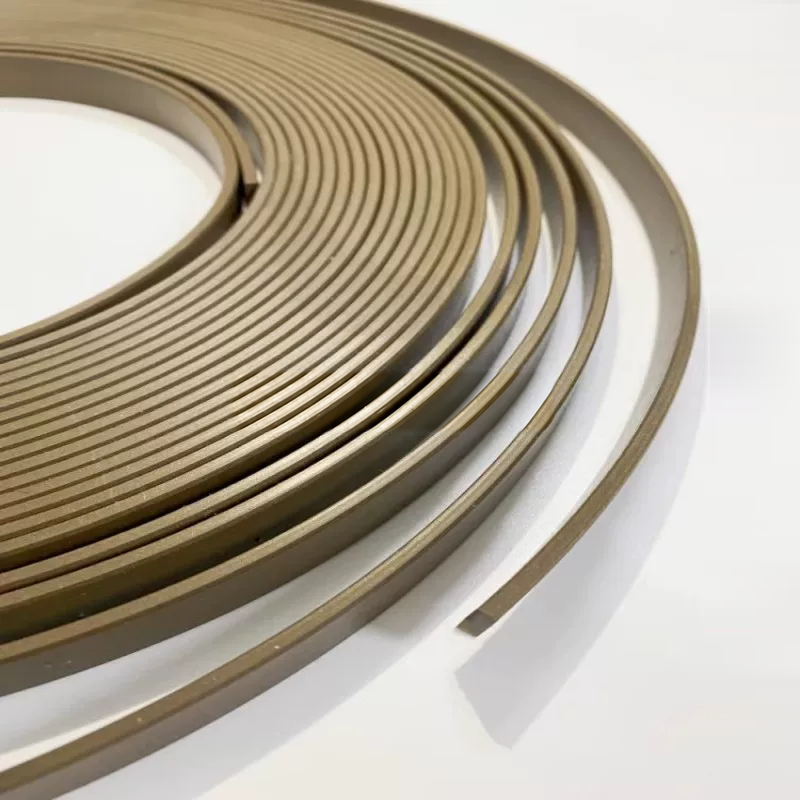

Concentric bronze filled PTFE guide bands showing the strip edges — Close view of the wound strip edges

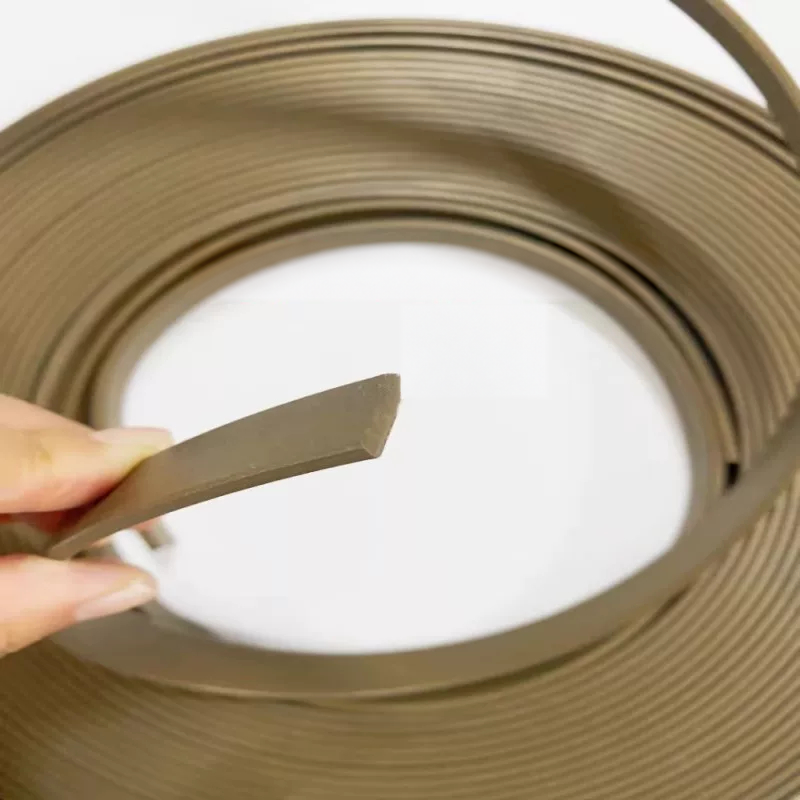

A hand holding the cut end of a bronze filled PTFE guide strip — Cut-end geometry and strip thickness

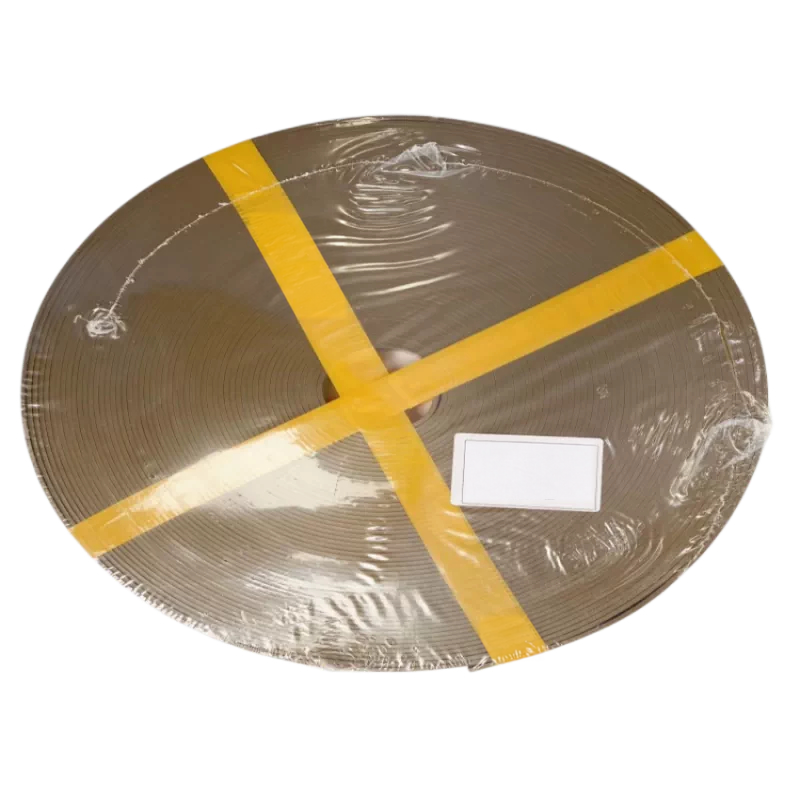

A wrapped bronze filled PTFE strip coil secured with yellow tape — Packed coil for handling and storage
