Virgin PTFE Guide Strips

White unfilled PTFE strip for low-friction guidance, sliding separation and an electrically insulating contact layer. Cut it into lengths or split guide rings where the design calls for PTFE without bronze or other functional filler.

62 listed B × T combinations
3–50 mm widths and 1.5–4 mm thicknesses
Unfilled white PTFE supplied by the metre or cut length

Request a Product Quote View specifications

White virgin PTFE guide strips opened into loops above a coil — Unfilled PTFE strip and the broad contact face

Material & configuration

Product Specifications

Match width and radial thickness to the guide position. Then define the length, installed diameter and end gap for the assembly.

Virgin PTFE Guide Strips specifications
Material	Virgin PTFE without functional filler
Reference family	CP-GTV
Appearance	White rectangular strip
Dimension order	Width B × radial thickness T; length separate
Listed widths	3–50 mm across 62 cross-section combinations
Listed thicknesses	1.5, 2, 2.5, 3, 3.5 and 4 mm
Supply formats	Metre lengths, coils and cut segments
Primary duties	Low-friction separation and light-load sliding guidance
Installation details	Working diameter, end gap and straight or angled cut ends
Ordering basis	Metres plus individual cut lengths where required

Select a specification

Available Stock Specifications

62 unfilled PTFE strip cross-sections. Dimensions give B × T only; specify the total metres and any finished cut lengths in the inquiry.

Find a size or reference

62 specifications

Download all sizes (CSV)

Virgin PTFE Guide Strips standard options and supply formats
Reference SKU	Specification	Supply format	Supply route	Inquiry
CP-GTV-3X1.5	Width B 3 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-4X1.5	Width B 4 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-5X1.5	Width B 5 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-6X1.5	Width B 6 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8X1.5	Width B 8 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-9.7X1.5	Width B 9.7 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-10X1.5	Width B 10 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-12X1.5	Width B 12 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-15X1.5	Width B 15 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X1.5	Width B 20 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X1.5	Width B 25 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X1.5	Width B 30 × thickness T 1.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-4X2	Width B 4 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-5X2	Width B 5 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-6X2	Width B 6 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8X2	Width B 8 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8.5X2	Width B 8.5 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-9.7X2	Width B 9.7 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-10X2	Width B 10 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-12X2	Width B 12 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-15X2	Width B 15 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X2	Width B 20 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X2	Width B 25 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X2	Width B 30 × thickness T 2 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-4X2.5	Width B 4 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-5X2.5	Width B 5 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-6X2.5	Width B 6 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8X2.5	Width B 8 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8.5X2.5	Width B 8.5 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-9.7X2.5	Width B 9.7 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-10X2.5	Width B 10 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-12X2.5	Width B 12 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-15X2.5	Width B 15 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X2.5	Width B 20 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X2.5	Width B 25 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X2.5	Width B 30 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-35X2.5	Width B 35 × thickness T 2.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-6X3	Width B 6 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-8X3	Width B 8 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-9.7X3	Width B 9.7 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-10X3	Width B 10 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-12X3	Width B 12 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-15X3	Width B 15 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X3	Width B 20 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X3	Width B 25 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X3	Width B 30 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-35X3	Width B 35 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-40X3	Width B 40 × thickness T 3 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X3.5	Width B 20 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X3.5	Width B 25 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X3.5	Width B 30 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-35X3.5	Width B 35 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-40X3.5	Width B 40 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-50X3.5	Width B 50 × thickness T 3.5 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-10X4	Width B 10 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-15X4	Width B 15 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-20X4	Width B 20 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-25X4	Width B 25 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-30X4	Width B 30 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-35X4	Width B 35 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-40X4	Width B 40 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote
CP-GTV-50X4	Width B 50 × thickness T 4 mm	Metre; coil or cut length	Stock inquiry	Check Stock & Quote

Availability and price are quoted for the selected cross-section and required length. Coil length, cut-end work and packaging are included with the order specification; they are not fixed by the size reference.

Need a different specification? Send your dimensions

An unfilled contact surface for the assembly

Virgin PTFE provides a low-friction surface without a metal or other functional filler. It is useful where the design prioritizes an unfilled contact layer, electrical isolation or the chemical behavior of base PTFE.

The strip can separate moving metal faces or form a lightly loaded guide segment. Define the actual contact pressure and motion: unfilled PTFE creeps under sustained load and has different wear behavior from bronze filled guide material.

A strip size is not a finished ring diameter

A 10 × 2 mm reference specifies a 10 mm band width and 2 mm radial thickness. The finished circumference depends on the installed working diameter and the designed opening between the cut ends.

Set the end gap for the actual mounting arrangement and temperature range. Cut square, clean ends unless the drawing calls for an angled joint, and remove loose cutting debris before fitting the strip to the groove.

Choose unfilled and filled guides for different priorities

Use the white unfilled strip when its contact and insulation characteristics meet the design. For a heavily side-loaded hydraulic guide or repeated wear duty, compare a suitable filled compound and its bearing arrangement rather than increasing strip thickness alone.

Adhesive attachment and treated bonding surfaces are separate fabrication requirements. A standard coil has a natural PTFE surface; identify any bonding step and mating substrate when requesting an attached guide strip.

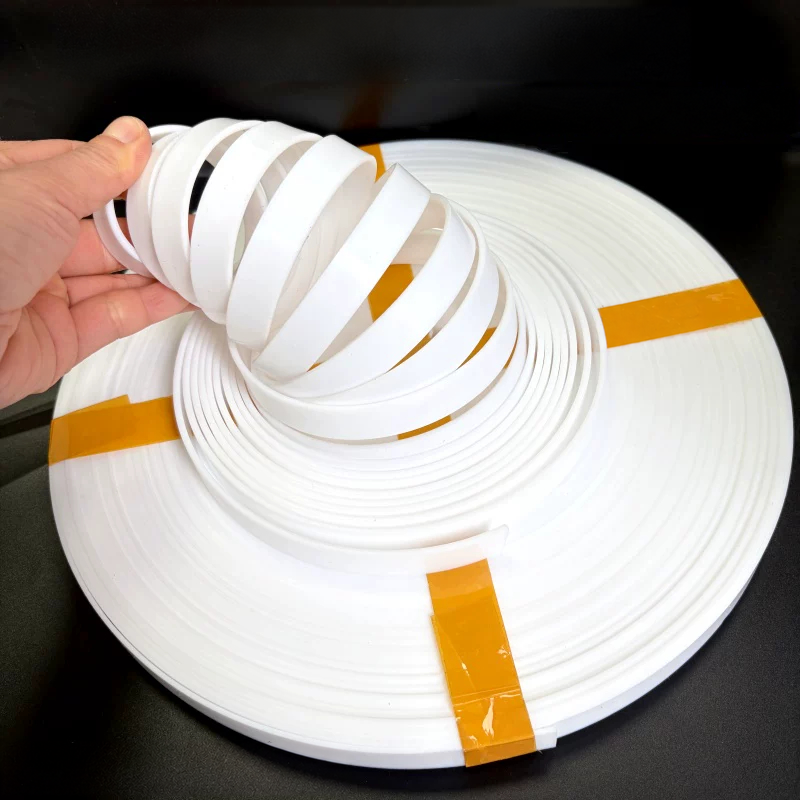

A hand lifting loops of white PTFE guide strip from a coil — Flexible strip for cutting and fitting

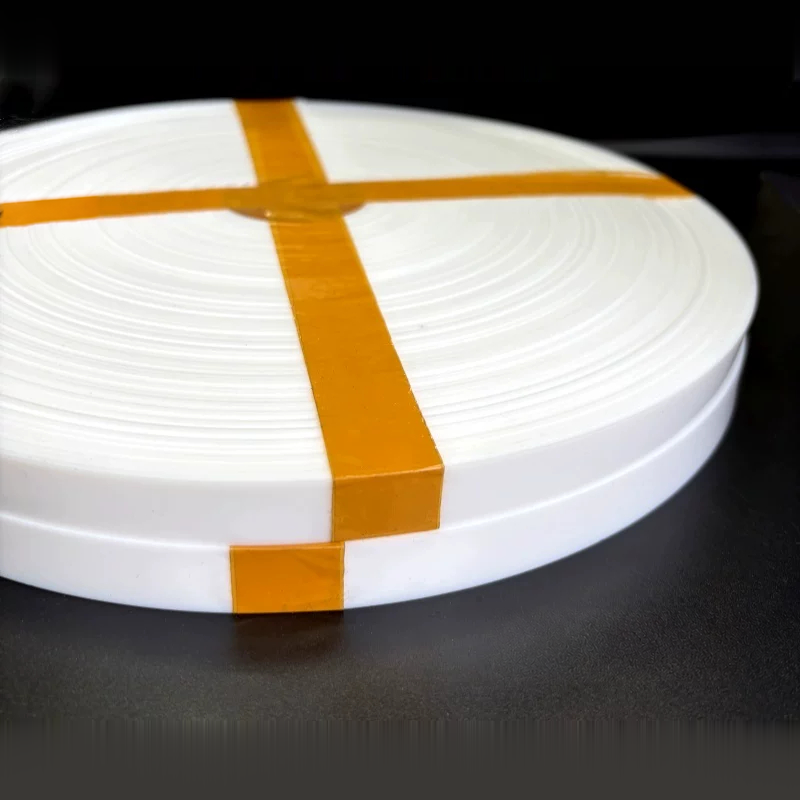

The edge and wound layers of a white virgin PTFE strip coil — The rectangular band section at the coil edge

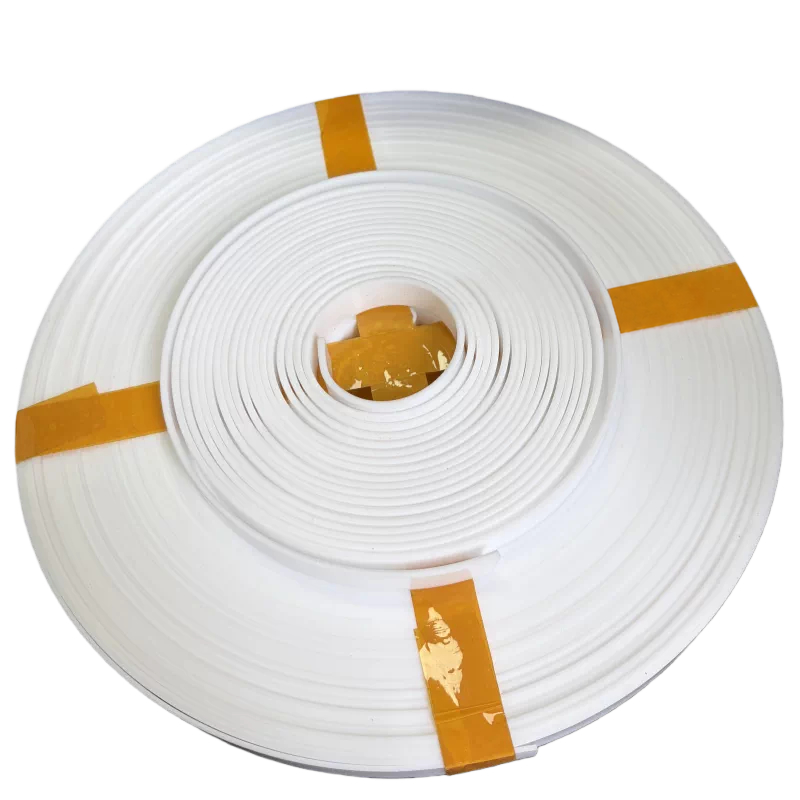

A flat white PTFE guide-strip coil secured with yellow tape — Coil supply with the strip length kept separate

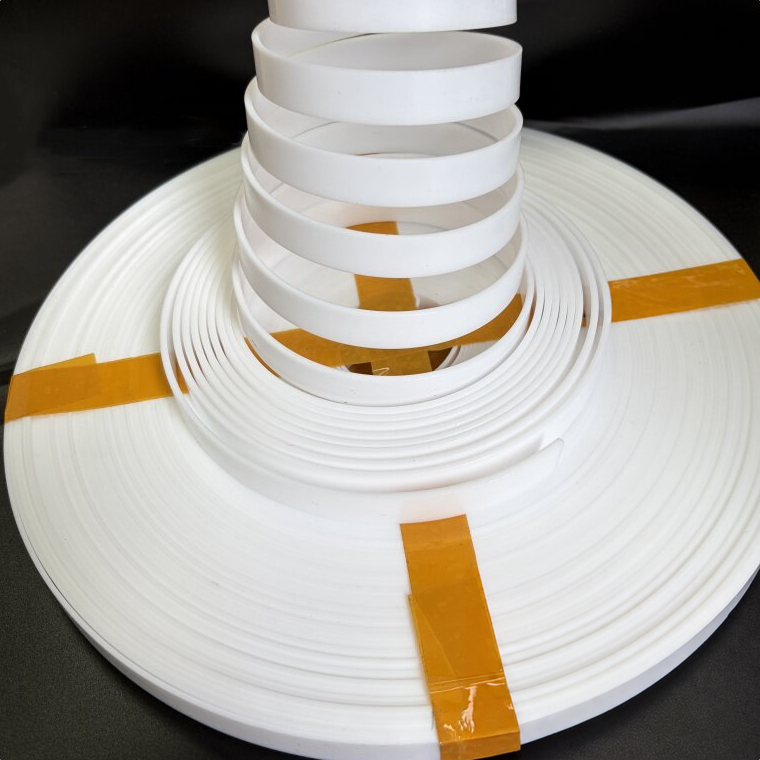

White PTFE guide-strip loops rising from a wound coil — Unwound strip before length and end-gap preparation

Virgin PTFE material characteristics Custom PTFE strip fabrication

Equipment & process duties

Applications

Light-load pneumatic guides

Create a low-friction separating band in a groove sized for the actual side load and sliding motion.

Insulating slide interfaces

Place an unfilled PTFE strip between conductive or sliding contact faces where the assembly needs isolation.

Maintenance and prototypes

Cut metre-length stock into trial segments or replacement bands with a defined working diameter and end gap.

Direct answers

Common Questions

What is virgin PTFE guide strip made from?

It is white unfilled PTFE without a functional bronze, glass, carbon or graphite filler.

How do I order a 10 × 2 mm guide strip?

Choose the 10 mm width × 2 mm radial-thickness reference, then give the total metres or finished cut lengths. Add installed diameter and gap if the strips will form guide rings.

When should I compare bronze filled strip?

Compare a filled guide compound for high side loads, sustained compression or demanding wear duty. Material selection needs the contact pressure, speed, lubrication and medium as well as the strip size.

Is the standard strip supplied with adhesive?

The standard strip is unbacked PTFE. State adhesive attachment or surface treatment separately, with the substrate and service conditions, for a fabricated bonding solution.

Specify your requirement

Quote Virgin PTFE Guide Strips

Provide the CP-GTV reference, total metres, coil or cut lengths and quantity. Add the groove width, working diameter, end gap, cut form, load, speed, lubrication, medium and temperature for a finished guide application.
