An adhesive-backed solid PTFE film for a smooth release face without a fiberglass weave. It follows curved surfaces and forms thin contact covers for rollers, guides and packaging equipment.
Material & configuration
Choose the construction and dimensions for the equipment and the material it handles.
| Backing | Solid PTFE film |
|---|---|
| Attachment | Adhesive-backed film with selected liner format |
| Gray listed options | 0.13, 0.18 and 0.25 mm |
| Black listed option | 0.08 mm film configuration |
| Cutting | Slit rolls, strips and shaped patches |
| Surface requirement | Smooth release face; finished thickness specified for the assembly |
Select a specification
These references use a solid-film backing rather than woven fabric. Select the film thickness, then give the width and length needed for the contact surface.
| Reference SKU | Specification | Supply format | Supply route | Inquiry |
|---|---|---|---|---|

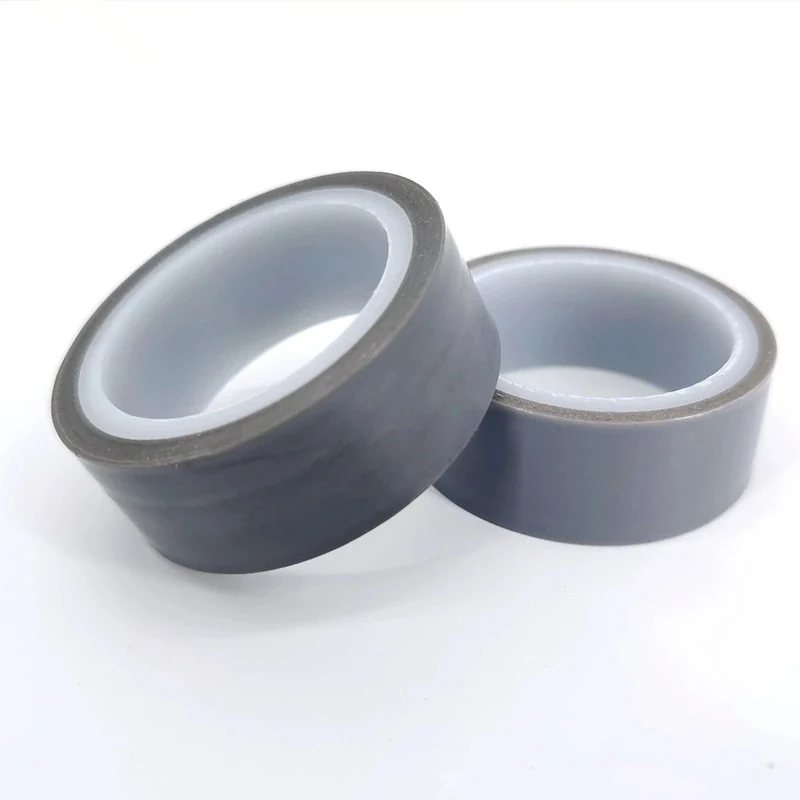

| CPT-FT-013-GY | 0.13 mm; gray; adhesive-backed PTFE film | Slit roll or cut strip; dimensions to order | Stock inquiry | Check Stock & Quote |
| CPT-FT-018-GY | 0.18 mm; gray; adhesive-backed PTFE film | Slit roll or cut strip; dimensions to order | Stock inquiry | Check Stock & Quote |
| CPT-FT-025-GY | 0.25 mm; gray; adhesive-backed PTFE film | Slit roll or cut strip; dimensions to order | Stock inquiry | Check Stock & Quote |

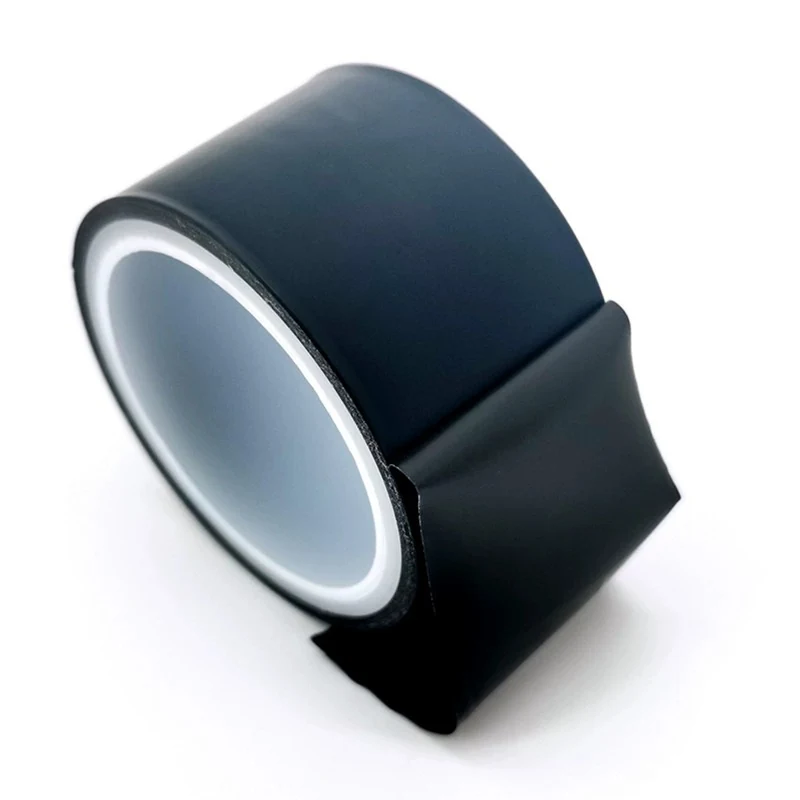

| CPT-FT-008-BK | 0.08 mm; black; adhesive-backed film | Slit roll or cut strip; dimensions to order | Stock inquiry | Check Stock & Quote |
The black film option is selected separately from the gray range. Include any electrical-resistance requirement and the required adhesive and liner arrangement in the inquiry.
Need a different specification? Send your dimensionsFilm tape removes the woven texture associated with coated glass fabric. That helps when the workpiece must travel over a smooth release surface or when a thin wrap must follow a roller contour.
The film backing is flexible and can stretch during application. Install it without excessive tension so it does not pull back, wrinkle or leave a lifted edge after use. An overlap changes the local thickness, so locate the seam deliberately.
PTFE film suits low-friction contact faces and conformable covers. A reinforced glass tape is often more practical where the cover must resist repeated handling across a broad flat tool.
In a loaded guide or sliding surface, the film is a replaceable contact layer rather than a structural bearing. Keep the substrate smooth and make the edge accessible for replacement. Select adhesive temperature and chemical resistance for the bond line itself.
Equipment & process duties
Provide a smooth release face for adhesive-coated webs and packaging materials.
Cover local guide surfaces where a thin replaceable film reduces sticking during travel.
Wrap shallow curves and compact tooling without introducing a woven contact texture.
Direct answers
No. This range uses solid PTFE film as its backing. PTFE fiberglass adhesive tape is a separate reinforced construction.
No. Etching prepares a PTFE surface for a separate adhesive system. Film adhesive tape already includes a backing adhesive and is selected as a complete tape construction.
Yes, by selecting the electrical behavior required for the equipment. Specify the resistance range and grounding method; a black appearance alone does not define a static-control grade.
Specify your requirement
Provide the wrap width, roller circumference or patch dimensions, film and finished thickness, substrate, contact pressure, temperature and order quantity.
Send Your RequirementCompare the construction
